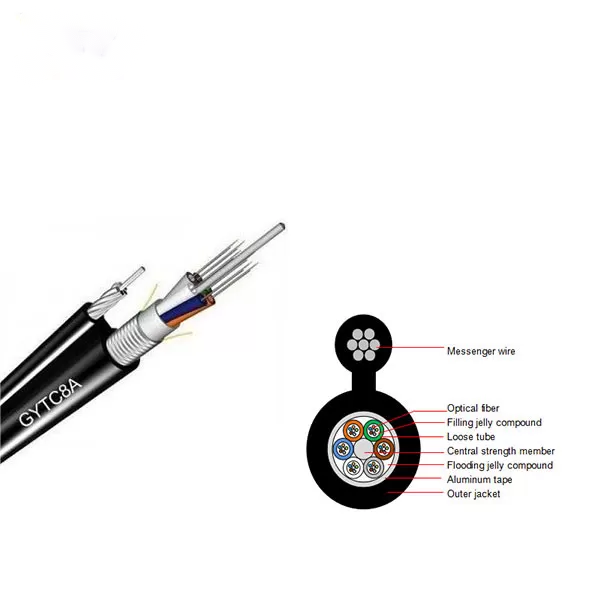

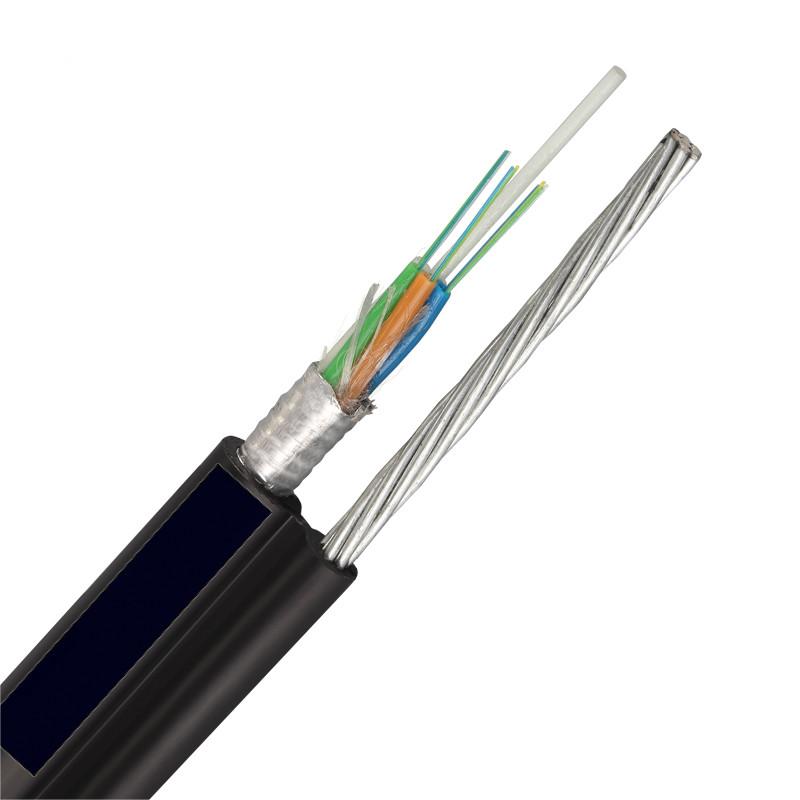

GYTC8A Figure 8 Fibe Optic Cable

GYTC8A

GYTC8S fiber optic cable, single-mode/multi-mode fibers are positioned in the loose tubes.
Description
Specifications
Construction

Product Description

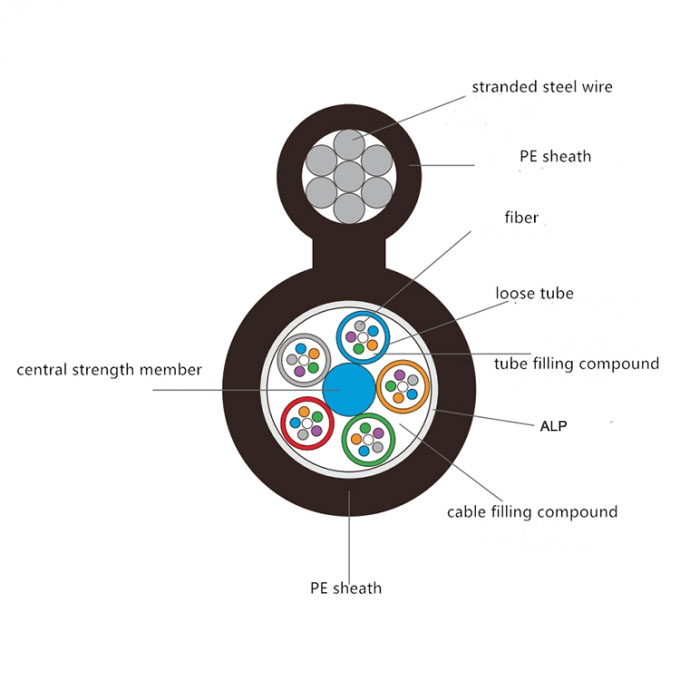

GYTC8S fiber optic cable, single-mode/multi-mode fibers are positioned in the loose tubes.while the loose tubes strand together around metallic central strength member into a compact and circular cable core, and the water-blocking materials are distributed intointerstices of it. After a APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.

Product Features

·Up to 288 Fiber Optic.

·Cable section is “8” ,with 7*1.2mm steel wires.

·APL corrugated aluminium tape.

·Steel wire strength member.

·PBT loose tube,each tube max 12 fibers.

·The loose tube stranding technology make the fibers have good secondary excess lenth and allow the fibers free movement in the tube. Which keeps the fiber stress-free while the cables is subjected to longitudinal stress.

·Corrugated steel lape armored and PE outer sheath providing properity crush resistance and gun shot resistance features.

·Stranded wires as sell supportiong member providing excellent strain performance and convenlent installation.

Product Standards

·YD/Y 1155-2001 as well as IEC 60794-1.
